Inefficient cationic lipid-mediated siRNA and antisense oligonucleotide transfer to airway epithelial cells in vivo
Respiratory Research volume 7, Article number: 26 (2006)
The cationic lipid Genzyme lipid (GL) 67 is the current "gold-standard" for in vivo lung gene transfer. Here, we assessed, if GL67 mediated uptake of siRNAs and asODNs into airway epithelium in vivo.
Anti-lacZ and ENaC (epithelial sodium channel) siRNA and asODN were complexed to GL67 and administered to the mouse airway epithelium in vivo Transfection efficiency and efficacy were assessed using real-time RT-PCR as well as through protein expression and functional studies. In parallel in vitro experiments were carried out to select the most efficient oligonucleotides.
In vitro, GL67 efficiently complexed asODNs and siRNAs, and both were stable in exhaled breath condensate. Importantly, during in vitro selection of functional siRNA and asODN we noted that asODNs accumulated rapidly in the nuclei of transfected cells, whereas siRNAs remained in the cytoplasm, a pattern consistent with their presumed site of action. Following in vivo lung transfection siRNAs were only visible in alveolar macrophages, whereas asODN also transfected alveolar epithelial cells, but no significant uptake into conducting airway epithelial cells was seen. SiRNAs and asODNs targeted to β-galactosidase reduced βgal mRNA levels in the airway epithelium of K18-lacZ mice by 30% and 60%, respectively. However, this was insufficient to reduce protein expression. In an attempt to increase transfection efficiency of the airway epithelium, we increased contact time of siRNA and asODN using the in vivo mouse nose model. Although highly variable and inefficient, transfection of airway epithelium with asODN, but not siRNA, was now seen. As asODNs more effectively transfected nasal airway epithelial cells, we assessed the effect of asODN against ENaC, a potential therapeutic target in cystic fibrosis; no decrease in ENaC mRNA levels or function was detected.
This study suggests that although siRNAs and asODNs can be developed to inhibit gene expression in culture systems and certain organs in vivo, barriers to nucleic acid transfer in airway epithelial cells seen with large DNA molecules may also affect the efficiency of in vivo uptake of small nucleic acid molecules.
The inhibition of gene expression mediated by antisense oligonucleotides (asODN) has a long history. The first asODN-based drug (Vitravene) for the treatment of cytomegalovirus (CMV)-induced retinitis in AIDS patients has been approved , and several phase I, II and III trials for the treatment of cancer and a variety of inflammatory conditions are currently ongoing. AsODNs have also been considered for treatment of a variety of lung diseases including asthma and other pulmonary inflammatory diseases and have shown some efficacy in pre-clinical models after nebulisation, intratracheal injection, intravenous or intraperitoneal administration. Phase I trials using asODN against the adenosine A(1) receptor have been carried out in asthmatics and shown to be safe but phase IIa trials did not demonstrate efficacy in patients using inhaled steroids.  Effective asODN can be generated against intronic and splice-site sequences [3, 4], implying that asODN function mainly in the nucleus, where they bind to mRNA target sequence specifically by forming Watson-Crick base pairs. The mRNA/asODN hybrid is subsequently recognised by RNase H, which leads to degradation of the mRNA target.
More recently RNA interference (RNAi), using short (<30 bp) double-stranded RNA molecules termed siRNAs, has emerged as an alternative gene silencing strategy. RNAi was first identified in plants and invertebrates, but more recently also in mammalian cells. Since the studies in mammalian cells [5, 6] a large number of publications now document the use of RNAi in cell culture-based systems and the power of RNAi for drug validation and studies of enzyme pathways is well recognized. The use of RNAi as a therapeutic approach is in its infancy, but several organs, including liver, eye, lung, brain, skeletal muscle, as well as tumours, have been targeted successfully in vivo.
Antisense or RNAi-mediated gene silencing may provide novel opportunities for the treatment of cystic fibrosis (CF). CF is caused by mutations in the cystic fibrosis transmembrane conductance regulator gene (CFTR) and affects many organs, but most morbidity and mortality relates to chronic inflammation and bacterial colonisation of the lung. The CFTR gene encodes a chloride channel in the apical membrane of epithelial cells, and in CF patients chloride secretion through CFTR is reduced or absent. This, coupled with increased sodium absorption through the epithelial sodium channel (ENaC), leads to abnormal water transport across the epithelium and accumulation of sticky, dehydrated mucus, which in turn leads to chronic bacterial colonisation and inflammation (reviewed in ). Similar to CFTR, ENaC is expressed in airway surface epithelium and glands . Normally CFTR inhibits ENaC-mediated sodium transport, although the mechanism is not completely understood [9, 10]. In CF this inhibition is lost, resulting in increased sodium and water absorption. Down-regulation of ENaC expression, or inhibition of its function, may therefore attenuate CF lung disease. The latter has proved difficult  because of the short half-life of amiloride, and potential renal side effects of longer acting inhibitors. With regards to the former, ENaC consists of 3 separate subunits (α, β and γ). Jain et al generated asODN against all three subunits, and demonstrated that only asODN against the α subunit significantly decreased the density of ENaC channels .
Transfection of differentiated airway epithelial cells with plasmid DNA (pDNA), which is generally >5000 bp, is inefficient, and the extra- and intracellular barriers to airway gene transfer have been identified over the last decade (reviewed in ). Here, we assessed, whether smaller nucleic acids such as asODNs (20 bases) or siRNA (20–22 base pairs) can more readily overcome these barriers, and thereby provide an alternative approach for the treatment of CF lung disease.
Material and methods
SiRNA, asODN and in vitro assessment of lipid complexation
The asDNA used in this study were designed using a proprietary algorithm (GlaxoSmithKline, Stevenage, UK). The oligonucleotides were 'gapmers' and consisted of 2'O-methyl RNA (5 residues), phosporothioate DNA (10 residues), 2'O-methyl RNA (5 residues), and were synthesised by Proligo (Hamburg, Germany) . Synthetic siRNAs (CAT, GFP, LacZ) were synthesized by Xeragon using 29-O-(tri-isopropyl) silyloxymethyl chemistry (Qiagen Inc. Germantown MD, USA) as previously described . Synthetic siRNAs corresponding to ENaC were obtained from Dharmacon Inc (Chicago, IL, USA).
SiRNA and asODN (1.6 mg/ml = 4.8 mM) were complexed to Genzyme Lipid 67 (GL67) at different molar ratios (lipid:DNA) in a total volume of 100 ul as previously described . Following incubation, 8 μg siRNA and asDNA from each reaction were separated on an agarose gel (0.4%) to resolve lipid-complexed and free nucleotides. Controls included a standard plasmid (6 kb) complexed in a similar manner. At least two independent reactions were carried out for each condition and representative images are shown. Particle size was determined by dymanmic laser light scatter using a Coulter N4SD submicron particle analyser (Hialeah, USA).
Stability in exhaled breath condensate (EBC)
CF patients were recruited through the Adult Cystic Fibrosis Service at the Western General Hospital in Edinburgh. Non-CF control subjects were recruited from staff at the Western General Hospital. Written informed consent was obtained and the study was approved by the Lothian Health Ethics Committee. Prior to collection of EBC, subjects rinsed their mouths with water. Subjects then breathed through a Jaeger Ecoscreen EBC collection device (Jaeger, Hoechberg, Germany) for 5 minutes. This allows subjects to perform tidal breathing through a two-way valve mechanism while trapping saliva. 500–1000 μl of EBC were collected from each individual. To determine the stability of asDNA or siRNA in fresh EBC, equal volumes of nucleic acid (diluted to 500 ng/μl in nuclease-free H20) and EBC from either a CF patients (n = 2) or healthy individuals (n = 2) were incubated together for 1, 5, 30 and 60 minutes at 37°C. As positive and negative controls, each nucleic acid was incubated with either nuclease-free H20, 200 ng RNase A (QIAGEN) or 2 units DNase 1 (Sigma), as appropriate, for 1, 5, 30 and 60 minutes at 37°C. After incubation, the samples were placed on ice and immediately characterised using the Agilent 2100 Bioanalyser microfluidics system (Agilent Technologies UK Ltd, Stockport, UK). For this, 1 μl of denatured sample was loaded onto a primed RNA 6000 chip and the integrity of each nucleic acid was determined from the digital output data.
Cell culture based transfection
For cell culture based pre-screening of siRNAs approximately 2 × 105 NIH-3T3 cells stably expressing β-galactosidase (generated through retroviral transduction of an ecotropic retroviral vector carrying LacZ and G418 slection for neomycin resistance) were transfected with 2 μg of siRNA complexed with 10 μg Lipofectamine 2000 (Life Technologies, Gaithersburg, MD) in 12-well plates. SiRNA-lipid complexes were formed in unsupplemented medium (DMEM), and added directly to cells after approximately 15 minutes. Four hours after addition of the siRNA-lipoplex, DMEM plus 20% foetal bovine serum was added. Cells were harvested 72–96 hours after transfection and assayed for β-galactosidase protein expression
For cell culture based pre-screening of asDNA, NIH-3T3-lacZ cells were plated at 2 × 104 cells per well in a 96-well plate, 18 hours prior to transfection. Liposome complexes were made up as follows: for each well, 10 μl of 10× final concentration asDNA (100 or 200 nM) were diluted in OptiMem (Invitrogen, Paisley, UK) from a 100 M stock in water. This was mixed with 5 μg Lipofectamine 2000 (Invitrogen, UK) in 10 μl OptiMem, and incubated for 15 min at room temperature. Complexes were then diluted to a total volume of 100 μl in OptiMem and added directly to cells after washing with OptiMem. Forty-eight hours after transfection, cells were lysed and β-gal protein and total protein assayed using the β-gal reporter kit (Roche, Welwyn, UK) and the Coomassie Plus Protein Assay kit (Per-Bio, Cramlington, UK) according to manufacturer's recommendations. M1 cells (murine kidney epithelium) (ATCC) were grown to 70% confluency in 6-well-plates and transfected with ENaC siRNA or asDNA (100 nM or 200 nM) complexed to Lipofectamine 2000 (5 μg lipid/ml,) as described above. Forty-eight hours after transfection cells were harvested and total RNA prepared and quantitative RT-PCR carried out as described below.
To determine transfection efficiency and intracellular distribution, semi-confluent M1 cells were transfected in 8-well chamber slides with lipid-complexed FITC-labelled siRNA, asDNA (final concentration 100 nM), lipid only or left untransfected (VWR, Leics, UK). Transfection reagents and volumes were scaled down according to surface area (well in 6-well plate: 9.4 cm2, well in 8-well chamber slide 0.32 cm2). At different time-points after transfection (1, 15, 30, 60 min, 2, 4, 6, 8, 18 and 24 hours) cells were washed in PBS, fixed in 4% paraformaldehyde for 10 min, washed again in PBS, stained with DAPI (1 μg/ml) for 15 min and mounted with Vectashield (Invitrogen, Paisley, UK). Confocal microscopy was carried at an original magnification of 40×. Two independent experiments were carried out with n = 2 wells per condition. A minimum of 3 fields of view were analysed per well. Representative images are shown.
In vivo transfection of lungs
All animal studies were approved by the UK Home Office and Imperial College London. Flourescently (FITC)-labelled asODN or siRNA (160 μg/mouse in 100 μl, the maximum total volume allowed for lung instillations) were complexed to GL67 at a 0.25:1 molar ratio (lipid:DNA) controls received lipid only. BALB/C mice (female 6–10 weeks, n = 3/group) were anaesthetised with metophane (Medical Developments Australia Pty Ltd, Springvale, Australia) and the liposome complexes were placed as a single bolus into the nasal cavity and the solution rapidly sniffed into the lungs. One and 24 hours after transfection animals were culled, the trachea exposed and the lungs inflated with 4% paraformaldehyde (pH 7.3) using a catheter (20 gauge, Ohmeda, Sweden) inserted into the trachea. The lungs were than removed en bloc and placed into 4% paraformaldehyde for a further 12–18 hours. The tissues were processed and paraffin-embedded using standard procedures and 5 μm sections cut (at least 5/mouse approximately 50 μm apart). Sections were counter stained with DAPI (1 μg/ml) and mounted with Vectashield (Invitrogen). Biodistribution was determined using confocal microscopy with an optical thickness of 1 μm (60× objective). A total of 6 individual images from different regions of the lung per animal/section were analysed and representative images are shown.
For transfection of K18-lacZ mice, siRNA or asDNA were complexed to GL67 and mice were transfected as described above (40 and 160 μg/mouse, respectively). At indicated time-points after transfection lungs were harvested, split in half and processed for βgal mRNA (see below) and protein quantification. The 72 hours control group in the asDNA mRNA graph is missing for technical reasons. For the βgal protein quantification lungs were homogenised in 500 μl Universal Lysis Buffer (Roche), freeze/thawed three times, spun at 10,000 gav for 10 min and supernatant was frozen for analysis. βgal protein expression was quantified in lung homogenates using the luminescent βgal Reporter System 3 (BD Biosciences Clontech, Palo Alto, USA) according to manufacturer's recommendations. Total protein was quantified using the DC Protein Assay Kit (BioRad, Herts, UK) according to manufacturer's recommendations and data expressed as pg βgal/mg total protein. Two independent experiments were carried out for each condition.
In vivo transfection of nose and PD measurements
Fluorescently (FITC)-labelled asDNA or siRNA were complexed to GL67 (80 μg/mouse in 100 μl total volume). Mice (BALB/C, female 6–10 weeks) were anaesthetised [one part Hypnorm (Janssen Animal Health, Oxford, UK), one part Hypnovel (Roche, Welwyn Garden City, UK), and two parts water for injection (10 ml/kg)] and placed onto heated boards in the supine position. A fine tip catheter was inserted 5 mm into the nasal cavity and the liposome formulation was slowly perfused (1.3 μl/min) over 75 min using a peristaltic pump. During the procedures the animals were placed at an angle (approximately 45° head down) to prevent aspiration. One or twenty-four hours after transfection animals were culled, the nasal septum removed and fixed over-night in 4% paraformaldehyde. The tissues were processed and paraffin-embedded using standard procedures and 5 μm sections cut (at least 5/mouse approximately 50 μm apart). Sections were counter stained with DAPI (1 μg/ml) and mounted with Vectashield (Molecular Probes). Distribution was determined using confocal microscopy with an optical thickness of 1 μm (60× objective). A total of 6 individual images from different regions of the septum per animal were analysed and representative images are shown.
For transfection with ENaC asODN5, the asODN was complexed to GL67 and the mouse transfected as described above. Twenty-four, 48 and 72 hours after transfection nasal potential difference (PD) was measured as described below, after which the animal was culled and the nasal septum removed for RNA extraction and mRNA quantification.
PD measurements were carried out as previously described . In brief, a fine, double-lumen polyethylene catheter was inserted into the nose. One lumen conveyed perfusate via a peristaltic pump (Pharmacia, Cambridge, UK) at a rate of 21 μl/min, and the other served as an exploring electrode connected via a calomel electrode (Russell pH Ltd., Auchtermuchty, Scotland, UK) to a handheld computer (Psion, London, UK) containing a low-pass signal-averaging filter with a time constant of 0.5 s (Logan Research Ltd., Sussex, UK). A reference electrode was placed subcutaneously in the flank of the mouse and was similarly connected to the computer. The circuit was validated with a measurement of buccal PD prior to insertion of the catheter, acceptable values being 10 to 20 mV. After recording of baseline PD, animals were perfused with a buffer containing amiloride to inhibit sodium absorption via ENaC channels.
RNA extraction and quantitative RT-PCR
For RNA extraction tissue samples were immediately submerged in RNAlater (Ambion, Huntingdon, UK) after harvesting and stored at or below 4°C until further analysis. Cells were immediately submerged in RLT buffer (Qiagen, Germany) and stored at -80°C. Tissue samples were homogenized in RLT buffer and cell samples were passed through a QiaShredder (Qiagen Ltd, Crawley UK) prior to extraction of total RNA using the RNeasy mini protocol (Qiagen). Levels of mRNA were quantified by real-time quantitative multiplex TaqMan RT-PCR using the ABI Prism 7700 Sequence Detection System and Sequence Detector v1.6.3 software (Applied Biosystems, Warrington, Cheshire, UK). The oligonucleotide primer and fluorogenic probe sequences were designed using Primer Express Software version 1.5 (Applied Biosystems). LacZ mRNA was quantified using forward LacZ primer (5' ATC AGG ATA TGT GGC GGA TGA 3'), reverse LacZ primer (5' CTG ATT TGT GTA GTC GGT TTA TGC A 3'), and fluorogenic LacZ probe (5' FAM- CGG CAT TTT CCG TGA CGT CTC GTT -TAMRA 3'). ENaC mRNA was quantified using forward ENaC primer (5' GAC CTC CAT CAG TAT GAG AAA GGA A 3'), reverse ENaC primer (5' GAC ATC GCT GCC ATT CTC AGT 3'), and fluorogenic ENaC probe (5' VIC- CCT GGA CAG CCT CGG AGG CAA CTA -TAMRA 3'). mCFTR was quantified using forward mCFTR primer (5' TCG TGA TCA CAT CAG AAA TTA TTG ATA AT 3'), reverse mCFTR primer (5' CCA CCT CTC TCA AGT TTT CAA TCA T 3') and fluorogenic mCFTR probe (5' FAM- CGC TCA TTC CCA ACA ATA TGC CTT AAC AGA ATA -TAMRA 3').
RNA was reverse transcribed with TaqMan RT reagents (Applied Biosystems). The RT-reaction mix (5 μl) consisted of 1X TaqMan RT buffer, 5.5 mM MgCl2, 500 μM each dNTP, 0.4 U/μl RNase inhibitor, 1.25 U/μl MultiScribe Reverse Transcriptase, 0.4 μM of LacZ or ENaC reverse primer, 0.4 μM of rRNA reverse primer and approximately 50 or 100 ng total RNA for ENaC or LacZ quantification, respectively. Reactions were incubated at 48°C for 30 min followed by 95°C for 5 min. Subsequently, triplicate 25-μl PCRs were performed for each sample. Each 25-μl reaction consisted of 1X TaqMan Universal PCR Mastermix (Applied Biosystems), 300 nM forward primer, 300 nM reverse primer, 100 nM probe, and 5 μl reverse-transcribed template. Reactions were incubated at 50°C for 2 min and then 95°C for 10 min followed by 40 cycles of 95°C for 15 s and 60°C for 1 min. Controls included no-template and no-reverse transcriptase reactions in which total RNA or MultiScribe reverse transcriptase and RNase inhibitor were omitted from the reverse transcriptase reaction, respectively. Relative levels of ENaC- or LacZ-specific mRNA were determined using the ΔΔC T method . In this study the amount of target LacZ or ENaC was normalized to ENaC or murine CFTR, respectively (endogenous reference) and expressed relative to an arbitrary calibrator sample that was used throughout the study. The calibrators used were RNA derived from a K18-LacZ transgenic mouse lung for LacZ quantification and naïve mouse lung for ENaC quantification.
Values are expressed as the mean ± SEM for convenience or dot plots plus mean. n refers to the number of animals or tissue culture samples used. Data were compared using ANOVA plus post hoc analysis or independent sample t-test where appropriate or paired sample test for PD measurements. The null hypothesis was rejected at p < 0.05.
Assessment of the physical characteristics of GL67-complexed small nucleic acids
The characteristics of plasmid DNA(pDNA)-Genzyme Lipid 67 (GL67) complexes have been described . To compare these with small nucleic acid molecules asODNAs and siRNAs we generated lipoplexes  using a range of lipid:nucleotide molar ratios (0.25:1 to 1:1). Agarose gels (Figure 1) showed that at the 0.25:1 ratio, which is the most efficient ratio for lung gene transfer , approximately 75% of the nucleotides (siRNA, asODN or pDNA) were incorporated within lipoplexes In all cases, increasing the lipid:nucleotide ratio further increased the amount of complexed nucleic acid. Light scatter analysis was used to determine the size of the lipoplexes, which were 294 ± 17, 369 ± 24 and 682 ± 235 nm for siRNA, asODN and pDNA, respectively at the 0.25:1 molar ratio and did not change at the 0.75:1 ratio (data not shown, n = 4/group in 2 independent experiments).

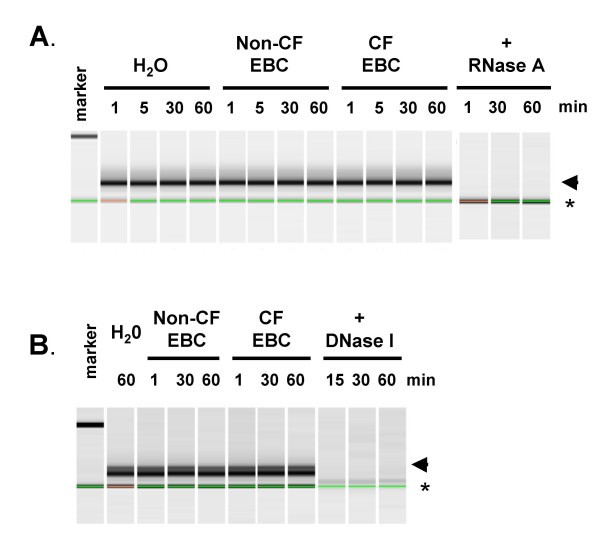

Stability of siRNAs and asODNs following exposure exhaled breath condensate (EBC)
Nucleic acids are prone to nuclease degradation. The stability of phosphorothioated asODN, in a variety of body fluids is well described, but neither the stability of asODNs or siRNAs has been studied in airway surface liquid (ASL), a potential barrier to transfection of the airway epithelium. ASL is difficult to collect, and we therefore used exhaled breath condensate (EBC) as a surrogate. Uncomplexed siRNA and asDNA nucleic acids were incubated in CF (n = 2) and non-CF (n = 2) EBC samples, or water, for 1–60 min. No evidence of nucleic acid degradation was observed (Figure 2). In control experiments siRNAs or asODNs were incubated with either RNase A or DNase I, respectively, for 1 to 60 min. In both cases complete degradation of the siRNA and asODN was seen (Figure 2).
Intracellular location of siRNAs and asODNs in vitro
M1 cells, a murine kidney cell line, express ENaC  and are, therefore, suitable for screening anti-ENaC siRNA and asODN sequences (see below). However, these cells have not been routinely used for transfection experiments. Here, we first determined transfection efficiency using FITC-labelled siRNAs and asODNs complexed to Lipofectamine 2000, one of the most efficient liposomes for in vitro nucleic acid gene transfer. AsODNs rapidly (as early as 30 min after transfection, Figure 3A+B) accumulated in the nucleus of transfected cells, whereas siRNA was only detectable in the cytoplasm (Figure 4A–D, n = 3 wells/time point). Twenty-four hours after transfection approximately 80–90% of cells were transfected with either molecule (Figure 3C and 3D) and the overall distribution remained unchanged, with asODNs accumulating in the nuclei and siRNA in the cytoplasm. In control experiments we also transfected cells with double-stranded DNA oligonucleotides (dsODN); nuclear accumulation was similar to single-stranded asODN (data not shown). Thus interestingly, the intracellular localisation of siRNA and ODN appear to be consistent with their presumed sites of action.
Distribution of siRNA- and asODN in the murine lung in vivo
Genzyme Lipid (GL67) has been optimised for gene transfer to the airway epithelium and has been used in CF gene therapy trials [20, 21] and was, therefore, an obvious choice for delivering asODN and siRNA to the airways. We administered FITC-labelled siRNA and asODN (160 μg/mouse) complexed to GL67 to the mouse lung using a standard intranasal instillation protocol to determine distribution (n = 3/group). Interestingly, 24 hours after transfection the distribution of the two molecules was very different. Abundant asODN signal was visible in the cytoplasm of alveolar epithelial cells (Figure 5A), with only sporadic signal in the airway epithelium whereas siRNA could only be detected in alveolar macrophages (Figure 5B). For both siRNA and asODN, there was no difference in staining pattern one hour (data not shown) and 24 hours after transfection.
Efficacy of siRNA- and asODN-mediated gene silencing in the murine lung in vivo
Although FITC-labelled nucleic acids is an informative way to assess bio-distribution, tracking low levels of transfection in airway epithelial cells may have been below the detection limit of this assay. To address this potential problem, we studied K18-lacZ transgenic mice, which express β-galactosidase (β-gal) in airway epithelial cells (20) as a functional read-out of transfection efficiency. We first designed and tested 10 lacZ siRNA and 5 lac Z asODN (see Table 1 for sequences) in NIH-3T3 cells stably expressing LacZ. Three out of 10 lacZ siRNA reduced βgal expression by >50% relative to control levels (Z4: 919 ± 315 pg β-gal/mg protein; Z5: 1135 ± 194 pg β-gal/mg protein, Z7: 976 ± 310 pg β-gal/mg protein, control siRNAs: CAT: 2791 ± 306 pg β-gal/mg protein, GFP: 2896 ± 385 pg β-gal/mg protein); Z7 was chosen for further in vivo studies. All five lacZ asODN reduced expression between 40–60% relative to control asODN assayed 48 hrs after transfection. The most effective asODN (as4) reduced lacZ expression from 3133+/-346 pg βgal/mg protein in controls to 1044+/-142 pg/mg in asODN treated cells (p < 0.05) and this asODN was used in subsequent in vivo experiments.
The lacZ (Z7) siRNA was complexed to GL67 and administered by intranasal instillation to the mouse lung. Forty-eight hours later lungs were harvested, divided into two parts and used for mRNA quantification (quantitative RT-PCR) and βgal protein quantification (Figure 6). In animals treated with lacZ siRNA βgal mRNA was reduced by approximately 33% when compared to controls (lacZ siRNA: 0.58 ± 0.07, controls siRNA: 0.87 ± 0.07 relative lacZ mRNA expression, n = 12–14/group, p < 0.01). However, there was no significant change in βgal protein expression.

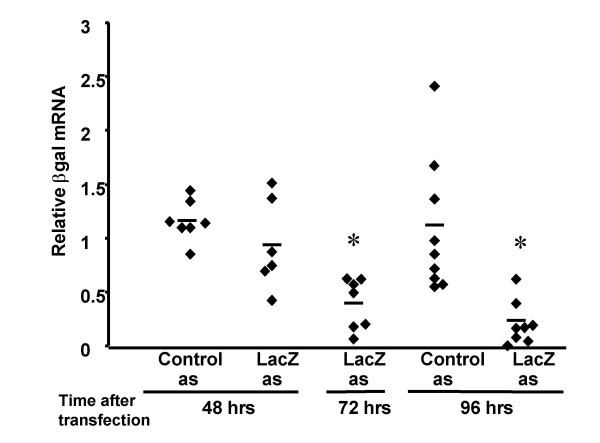

LacZ asODN was also complexed to GL67 and administered by intranasal instillation. Gene expression was analysed 48, 72 and 96 hours after administration. There was no decrease in lacZ mRNA at 48 hours, but 72 and 96 hours after transfection lacZ mRNA was significantly (p < 0.01) reduced by >60% (Figure 7) when compared to controls (n = 6–9/group). Similar to the siRNA there was no decrease in lacZ protein expression at any time-point studied (Figure 8). It is worth noting that these studies were only powered (80% power at p < 0.05) to detect a decrease in βgal protein expression of at least 60%.
Distribution of asODN and siRNA in the murine nose in vivo
Inefficient transfection of airway epithelial cells may be a key limiting factor in achieving meaningful levels of down-regulation of gene expression in vivo. The short contact time between airway epithelial cells and the administered complexes, as well as their pooling in alveolar region following the intranasal method likely contributes to this inefficiency. The murine nasal epithelium has a cell composition similar to that of the lower airways, and allows increased contact time by slow perfusion of the complexes directly onto the nasal epithelium via a catheter. This route of administration also allowed us to make functional measurements of ENaC silencing, via transepithelial potential difference measurements which can easily be undertaken in the murine nose.
To assess uptake efficiency in this region we perfused animals with FITC-labelled asODN or siRNAs complexed to GL67 (80 μg/mouse) and harvested tissues one or 24 hours after delivery (n = 6). No uptake of siRNA into nasal epithelial cells was seen at any time-point (data not shown) and, therefore, no further studies were undertaken with siRNA. For asODN the efficiency of uptake varied greatly from animal to animal. Figure 9A+B shows representative images from two treated animals covering the range of uptake seen. In general efficiency of uptake was low, with most animals (5 out of 6 mice) having only a few (<10/section) FITC-positive cells. There was no difference in staining pattern one hour (data not shown) and 24 hours after transfection.
Efficacy of anti ENaC asODN in the murine nose in vivo
To assess the efficacy of asODN against ENaC we first designed five ENaC asODN against the murine α subunit (αENaC asODN) and transfected into M1 cells using standard transfection conditions. Forty-eight hours after transfection cells were harvested and αENaC mRNA was quantified (Figure 10). The relative degree of αENaC mRNA reduction varied with asODNs and ranged from 5 to 60% (n = 6/group). Subsequent in vivo experiments were carried out using αENaC asODN 5.
Transepithelial potential difference measurements (PD) have been widely used to measure ion transport across murine nasal epithelium (21). A decrease in ENaC function would result in (a) a drop in baseline PD, because sodium transport is the main component of basal ion transport in the nasal mucosa and (b) a reduced effect of the ENaC blocker amiloride. We complexed αENaC asODN4 to GL67 (80 μg/mouse) and perfused these complexes into the mouse nose over 75 min. Twenty-four, 48 or 72 hours after administration basal PD and the effect of amiloride were measured in individual cohorts of animals (n = 10/group). After PD measurements all animals were culled and quantitative RT-PCR was carried out on nasal mRNA. We did not detect changes in baseline PD or the effect of amiloride at any time-point (Table 2), nor any reduction in αENaC mRNA (Figure 11). Thus, despite ensuring prolonged contact time of asODN/GL67 complexes with the nasal epithelial cells, transfection efficiency was variable and likely insufficient to reduce ENaC expression.
We have assessed the transfection efficiency and efficacy of small (approximately 20 bp) nucleic acids (siRNA and antisense DNA) complexed to GL67 in conducting airway epithelium in vivo. In general, uptake of small oligonucleotides was inefficient and although mRNA levels were reduced, we could not reduce protein levels or ENaC function. This study suggests that although siRNAs and asODNs can be developed to inhibit gene expression in culture systems and certain organs in vivo, barriers to nucleic acid transfer in airway epithelial cells seen with large DNA molecules also affect the efficiency of in vivo uptake of small nucleic acid molecules.
It is unlikely that alteration in nucleic acid size alone will result in improved airway nucleic acid transfer. We suggest, that the asODN and siRNA-based strategies may not be successful in conducting airway epithelium, until nucleic acid transfer is optimised further.
Interestingly, the intracellular distribution of asODN and siRNA following in vitro transfection into epithelial cells was very different, with asODN-lipoplexes accumulating rapidly in the nucleus while siRNA-lipoplexes were seen as a diffuse staining in the cytoplasm. For asODN this distribution was independent of nucleotide sequence, and has also recently been seen in other cell lines, such as A549 and HEK293 cells (Chris Kitson, GlaxoSmithKline, personal communication). To the best of our knowledge, we show, for the first time, that the respective localisations in vitro are consistent with the presumed sites of action of each of the molecules in inhibiting gene expression .
Various cationic lipids and polymers have been assessed for gene transfer to the airways, but information on a "best buy" non-viral transfer agents for small nucleic acid delivery does not currently exist. In our hands, GL67 has been most efficient for airway gene transfer and we have assessed its safety in phase 1 trials in normal volunteers and CF patients [20, 21]. Here, we assessed the efficacy for GL67 to delivery asODN and siRNA to the airways. In vivo, siRNA-lipoplexes were found predominantly associated with alveolar macrophages, whereas asODNs were, as has been reported previously, associated with pneumocytes. The reasons for this difference in cellular distribution is currently unclear, but may relate to differences in RNA versus DNA-lipoplex properties. Small differences in overall complex structure may for example alter the surface charge slightly, which in turn may affect cell uptake. Zhang and co-workers recently described administration of "naked" biotin-labelled siRNA to the lung and reported diffuse staining in airways and parenchyma . We were unable to detect any signal after administration of "naked" FITC-labelled siRNA in the lung (data not shown). This may in part reflect different detection limits of these methods (FITC versus biotin-streptavidin) in the lung, possibly due to high auto-fluorescence of lung tissue. We speculate that the differences in cellular distribution of asODN in vitro (mainly nuclear) and in vivo (mainly cytoplasmic) may be due to differences in the proliferation status of the transfected cells. M1 cells replicate rapidly, whereas the majority of pneumocytes are terminally differentiated non-dividing cells. The nuclear membrane is likely to present a significant barrier to ODN uptake in vivo.
The inefficient and variable degree of transfection of the airway epithelium was also reflected in the experiments testing inhibition of gene expression. In the airway epithelium of K18-lacZ transgenic mice the administration of lacZ asODN significantly reduced βgal mRNA 72 and 96, but not 48 hours, after transfection. In contrast, following lacZ siRNA transfection lacZ mRNA levels were significantly reduced 48 hours after transfection. The delayed response of asODNSs, may be due to the different sites and modes of action. In contrast to mRNA there was no reduction in βgal protein at any time point tested. There are a number of possible explanations. The predicted half-life of βgal protein is 20 hours. Harvesting lungs 48 hours after transfection should, therefore, have allowed a reduction in protein expression to be seen. However, the half-life of βgal protein in vivo may be longer than 20 hours, reducing the likelihood of detecting a significant change in protein levels during the time course of these experiments. In addition, we cannot exclude a non-linear response between protein amounts and enzymatic activity, which may require a substantial reduction in protein before any changes in enzymatic activity can be seen. Finally, even with the relatively large numbers studied, we were only powered to detect a protein reduction of 60% or more.
Recently several studies described the successful use of siRNA to inhibit pulmonary influenza virus and respiratory syncytial virus infections [25–27] using intravenous (IV) or intranasal (IN) administration of plasmid DNA encoding the siRNA or IV plus IN administration of siRNA. These studies did not specifically assess the effects of RNA interference in difficult to transfect conducting airway epithelial cells, but looked at global anti-viral responses in the lung. To the best of our knowledge efficacy of RNAi in airway epithelium has not been studied yet.
We tried to improve transfection efficiency by prolonging contact time with the airway epithelial cells. For practical reasons this necessitated a change to the nose. Despite this, we could not detect any intracellular fluorescent signal after administration of FITC-labelled siRNA/GL67 complexes and only a low and highly variable signal of asODN/GL67 complexes. Importantly, the overall transfection efficiency of nasal and lung airway epithelial cells was identical, despite anatomical differences, lending credit to using the nasal epithelium as a surrogate for airway nucleic acid transfer.
Despite using antisense ODNs that reduced αENaC mRNA by up to 60% in vitro, results consistent with other gene targets in our hands, these did not reduce ENaC mRNA or protein function in murine nasal epithelium in vivo. The reported half-life of the ENaC protein varies and appears to be cell-type specific, but is of the order of 40–120 min in cultured cells  and 3–4 hours in Xenopus oocytes . We know of no data for the murine airways. Thus, although the stability of the protein may play a role, we suggest that poor transfection is more likely the reason for the lack of effect.
The efficiency of siRNA and antisense inhibition is sequence dependent and though some attempts have been made to develop computer-assisted design of these types of molecules extensive biological testing is still required. The LacZ siRNAs described in this study were developed using first generation design guidelines that focused on the overall nucleotide composition and distribution (50:50 AU:GC ratio, with approximately equal distribution of pyrimidines and purines throughout the molecule). These siRNAs were analyzed prior to the development of second-generation guidelines that focus on more mechanistically relevant features of siRNAs, particularly a nucleotide composition that favours asymmetrically loading of siRNAs into the ribonucleoprotein complex that mediates RNAi. Using the first generation guidelines 3 out of 10 siRNAs mediated a significant degree of silencing. In our experience this proportion of effective siRNAs and asODNs reflected the success rate seen for the design of siRNAs against most transcripts using first generation guidelines.
A key development in improving small nucleic acid delivery in vivo, particularly of asODNs, has been modification of the molecules or their delivery agent to improve their stability in biological fluids. Neither asODN nor siRNA stability has been studied in the context of the extracellular lung environment in humans, though Templin et al nebulised asODN into the murine lung and reported a half-life of >20 hours . The airway surface liquid (ASL) lining the conducting airways is important for host defence and contains numerous anti-microbial peptides . Collection of unperturbed ASL in human lung is impossible and broncho-alveolar lavages (using comparatively large volumes) lead to dilution of ASL components. Although exhaled breath condensate (EBC), which can be collected non-invasively and consists of condensed water and microdroplets, containing volatile and non-volatile compounds representing ASL from the lower respiratory tract [32, 33], may not mimic all aspects of ASL, it goes some way towards assessing the stability of small nucleic acid in the human lung. Importantly, stability of asODNs and siRNAs in EBC from inflamed lungs of CF patients was similar to non-CF patients. These data support previously published stability data for second-generation asODN, [where one of the non-bridging oxygen atoms in the phosphodiester bond is replaced with sulphur (phosporothioation)], and the addition of 2' O-methylated RNA residues increase nuclease resistance, and also support the apparent nuclease stability of siRNA even in the absence of chemical modification. We did not assess stability of GL67/siRNA or asODN complexes, because it has previously been shown that lipid complexing further increases nuclease stability of oligonucleotides .
In summary, gene silencing targeted to conducting airway epithelial cells is currently inefficient, likely due to the relatively poor transfection efficiency of airway cells with siRNA and asODN lipid complexes. Techniques for small nucleic acid transfection are needed if the in vitro promise of these molecules is to be translated to airway epithelial cells in vivo.
McManaway ME, Neckers LM, Loke SL, al Nasser AA, Redner RL, Shiramizu BT, Goldschmidts WL, Huber BE, Bhatia K, Magrath IT: Tumour-specific inhibition of lymphoma growth by an antisense oligodeoxynucleotide. Lancet 1990, 335:808–811.
Kulka M, Smith CC, Aurelian L, Fishelevich R, Meade K, Miller P, Ts'o PO: Site specificity of the inhibitory effects of oligo(nucleoside methylphosphonate)s complementary to the acceptor splice junction of herpes simplex virus type 1 immediate early mRNA 4. Proc Natl Acad Sci USA 1989, 86:6868–6872.
Caplen NJ, Parrish S, Imani F, Fire A, Morgan RA: Specific inhibition of gene expression by small double-stranded RNAs in invertebrate and vertebrate systems. Proc Natl Acad Sci USA 2001, 98:9742–9747.
Elbashir SM, Harborth J, Lendeckel W, Yalcin A, Weber K, Tuschl T: Duplexes of 21-nucleotide RNAs mediate RNA interference in cultured mammalian cells. Nature 2001, 411:494–498.
Schildow DV, Friel SB: Cystic Fibrosis. In Clinical Respiratory Medicine. Mosby USA; 2004:19–29.
Rochelle LG, Li DC, Ye H, Lee E, Talbot CR, Boucher RC: Distribution of ion transport mRNAs throughout murine nose and lung. Am J Physiol Lung Cell Mol Physiol 2000, 279:L14-L24.
Reddy MM, Light MJ, Quinton PM: Activation of the epithelial Na+ channel (ENaC) requires CFTR Cl- channel function. Nature 1999, 402:301–304.
Konig J, Schreiber R, Voelcker T, Mall M, Kunzelmann K: The cystic fibrosis transmembrane conductance regulator (CFTR) inhibits ENaC through an increase in the intracellular Cl- concentration. EMBO Rep 2001, 2:1047–1051.
Hofmann T, Stutts MJ, Ziersch A, Ruckes C, Weber WM, Knowles MR, Lindemann H, Boucher RC: Effects of topically delivered benzamil and amiloride on nasal potential difference in cystic fibrosis. Am J Respir Crit Care Med 1998, 157:1844–1849.
Jain L, Chen XJ, Malik B, Al Khalili O, Eaton DC: Antisense oligonucleotides against the alpha-subunit of ENaC decrease lung epithelial cation-channel activity. Am J Physiol 1999, 276:L1046-L1051.
Ferrari S, Geddes DM, Alton EW: Barriers to and new approaches for gene therapy and gene delivery in cystic fibrosis. Adv Drug Deliv Rev 2002, 54:1373–1393.
Crooke ST, Lemonidis KM, Neilson L, Griffey R, Lesnik EA, Monia BP: Kinetic characteristics of Escherichia coli RNase H1: cleavage of various antisense oligonucleotide-RNA duplexes. Biochem J 1995, 312:599–608.
Lee ER, Marshall J, Siegel CS, Jiang C, Yew NS, Nichols MR, Nietupski JB, Ziegler RJ, Lane MB, Wang KX, Wan NC, Scheule RK, Harris DJ, Smith AE, Cheng SH: Detailed analysis of structures and formulations of cationic lipids for efficient gene transfer to the lung. Hum Gene Ther 1996, 7:1701–1717.
Smith SN, Middleton PG, Chadwick S, Jaffe A, Bush KA, Rolleston S, Farley R, Delaney SJ, Wainwright B, Geddes DM, Alton EW: The in vivo effects of milrinone on the airways of cystic fibrosis mice and human subjects. Am J Respir Cell Mol Biol 1999, 20:129–134.
Livak KJ, Schmittgen TD: Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25:402–408.
Eastman SJ, Lukason MJ, Tousignant JD, Murray H, Lane MD, St George JA, Akita GY, Cherry M, Cheng SH, Scheule RK: A concentrated and stable aerosol formulation of cationic lipid:DNA complexes giving high-level gene expression in mouse lung. Hum Gene Ther 1997, 8:765–773.
Howard DP, Cuffe JE, Boyd CA, Korbmacher C: L-arginine effects on Na+ transport in M-1 mouse cortical collecting duct cells – a cationic amino acid absorbing epithelium. J Membr Biol 2001, 180:111–121.
Alton EW, Stern M, Farley R, Jaffe A, Chadwick SL, Phillips J, Davies J, Smith SN, Browning J, Davies MG, Hodson ME, Durham SR, Li D, Jeffery PK, Scallan M, Balfour R, Eastman SJ, Cheng SH, Smith AE, Meeker D, Geddes DM: Cationic lipid-mediated CFTR gene transfer to the lungs and nose of patients with cystic fibrosis: a double-blind placebo-controlled trial. Lancet 1999, 353:947–954.
Ruiz FE, Clancy JP, Perricone MA, Bebok Z, Hong JS, Cheng SH, Meeker DP, Young KR, Schoumacher RA, Weatherly MR, Wing L, Morris JE, Sindel L, Rosenberg M, van Ginkel FW, McGhee JR, Kelly D, Lyrene RK, Sorscher EJ: A clinical inflammatory syndrome attributable to aerosolized lipid-DNA administration in cystic fibrosis. Hum Gene Ther 2001, 12:751–761.
Chow YH, O'Brodovich H, Plumb J, Wen Y, Sohn KJ, Lu Z, Zhang F, Lukacs GL, Tanswell AK, Hui CC, Buchwald M, Hu J: Development of an epithelium-specific expression cassette with human DNA regulatory elements for transgene expression in lung airways. Proc Natl Acad Sci USA 1997, 94:14695–14700.
Vickers TA, Koo S, Bennett CF, Crooke ST, Dean NM, Baker BF: Efficient reduction of target RNAs by small interfering RNA and RNase H-dependent antisense agents. A comparative analysis. J Biol Chem 2003, 278:7108–7118.
Zhang X, Shan P, Jiang D, Noble PW, Abraham NG, Kappas A, Lee PJ: Small interfering RNA targeting heme oxygenase-1 enhances ischemia-reperfusion-induced lung apoptosis. J Biol Chem 2004, 279:10677–10684.
Ge Q, McManus MT, Nguyen T, Shen CH, Sharp PA, Eisen HN, Chen J: RNA interference of influenza virus production by directly targeting mRNA for degradation and indirectly inhibiting all viral RNA transcription. Proc Natl Acad Sci USA 2003, 100:2718–2723.
Tompkins SM, Lo CY, Tumpey TM, Epstein SL: Protection against lethal influenza virus challenge by RNA interference in vivo. Proc Natl Acad Sci USA 2004, 101:8682–8686.
Zhang W, Yang H, Kong X, Mohapatra S, Juan-Vergara H, Hellermann G, Behera S, Singam R, Lockey RF, Mohapatra SS: Inhibition of respiratory syncytial virus infection with intranasal siRNA nanoparticles targeting the viral NS1 gene. Nat Med 2005, 11:56–62.
Staub O, Gautschi I, Ishikawa T, Breitschopf K, Ciechanover A, Schild L, Rotin D: Regulation of stability and function of the epithelial Na+ channel (ENaC) by ubiquitination. EMBO J 1997, 16:6325–636.
Valentijn JA, Fyfe GK, Canessa CM: Biosynthesis and processing of epithelial sodium channels in Xenopus oocytes. J Biol Chem 1998, 273:30344–30351.
Templin MV, Levin AA, Graham MJ, Aberg PM, Axelsson BI, Butler M, Geary RS, Bennett CF: Pharmacokinetic and toxicity profile of a phosphorothioate oligonucleotide following inhalation delivery to lung in mice. Antisense Nucleic Acid Drug Dev 2000, 10:359–368.
Singh PK, Tack BF, McCray PB Jr, Welsh MJ: Synergistic and additive killing by antimicrobial factors found in human airway surface liquid. Am J Physiol Lung Cell Mol Physiol 2000, 279:L799-L805.
Tate S, MacGregor G, Davis M, Innes JA, Greening AP: Airways in cystic fibrosis are acidified: detection by exhaled breath condensate. Thorax 2002, 57:926–929.
Effros RM, Biller J, Foss B, Hoagland K, Dunning MB, Castillo D, Bosbous M, Sun F, Shaker R: A simple method for estimating respiratory solute dilution in exhaled breath condensates. Am J Respir Crit Care Med 2003, 168:1500–1505.
Eastman SJ, Lukason MJ, Tousignant JD, Murray H, Lane MD, St George JA, Akita GY, Cherry M, Cheng SH, Scheule RK: A concentrated and stable aerosol formulation of cationic lipid:DNA complexes giving high-level gene expression in mouse lung. Hum Gene Ther 1997, 8:765–773.
We thank Eric Peruzel (ICVEC, London, UK), Steve Rothery (Royal Brompton Hospital, London, UK) and Ed Inett (Royal Brompton Hospital, London, UK) for their help with this project. The work was funded by the Cystic Fibrosis Research Trust and Senior CF Trust Fellowships (UG and DG).
Declaration of competing interests
The author(s) declare that they have no competing interests.
UG, CK, NJC and EWFWA conceived the study and wrote the manuscript. SEG, RF, CS, LS, HP, RLS, DRG, SCH, ME carried out all in vitro and in vivo work and molecular analysis and contributed to the design of the study. VO and GM carried out the stability testing in EBC, MG participated in the design of the study. YHC and JH provided the K18 mice, RKS and SC provided GL67. All authors read and approved the manuscript.
