Upregulation of leukocyte immunoglobulin-like receptor B4 on interstitial macrophages in COPD; their possible protective role against emphysema formation
Respiratory Research volume 22, Article number: 232 (2021)
Leukocyte immunoglobulin-like receptor B4 (LILRB4) is one of the inhibitory receptors in various types of immune cells including macrophages. Previous reports suggested that LILRB4 could be involved in a negative feedback system to prevent excessive inflammatory responses. However, its role has been unclear in chronic obstructive pulmonary disease (COPD), in which macrophages play a crucial role in the pathogenesis. In this study, we aimed to examine the changes of LILRB4 on macrophages both in the lung specimens of COPD patients and the lungs of a mouse emphysema model. We then tried to compare the differences in both inflammation and emphysematous changes of the model between wild-type and LILRB4-deficient mice in order to elucidate the role of LILRB4 in the pathogenesis of COPD.
We prepared single-cell suspensions of resected lung specimens of never-smokers (n = 21), non-COPD smokers (n = 16), and COPD patients (n = 14). The identification of LILRB4-expressing cells and the level of LILRB4 expression were evaluated by flow cytometry. We analyzed the relationships between the LILRB4 expression and clinical characteristics including respiratory function. In the experiments using an elastase-induced mouse model of emphysema, we also analyzed the LILRB4 expression on lung macrophages. We compared inflammatory cell accumulation and emphysematous changes induced by elastase instillation between wild-type and LILRB4-deficient mice.
The levels of surface expression of LILRB4 are relatively high on monocyte linage cells including macrophages in the human lungs. The percentage of LILRB4+ cells in lung interstitial macrophages was increased in COPD patients compared to non-COPD smokers (p = 0.018) and correlated with the severity of emphysematous lesions detected by CT scan (rs = 0.559, p < 0.001), whereas the amount of smoking showed no correlation with LILRB4 expression. Increased LILRB4 on interstitial macrophages was also observed in elastase-treated mice (p = 0.008). LILRB4-deficient mice showed severer emphysematous lesions with increased MMP-12 expression in the model.
LILRB4 on interstitial macrophages was upregulated both in human COPD lungs and in a mouse model of emphysema. This upregulated LILRB4 may have a protective effect against emphysema formation, possibly through decreasing MMP-12 expression in the lungs.
Chronic obstructive pulmonary disease (COPD) is a chronic respiratory disease caused by long-time inhalation exposure to toxic substances, mostly cigarette smoke . The pathological features of COPD are characterized by both emphysematous changes of the lung parenchyma and inflammation of the small airways . Pharmacological reagents, including bronchodilators and inhaled corticosteroids, are used to reduce symptoms, prevent exacerbations, and improve exercise tolerance and the health status of COPD patients . Inhaled corticosteroids, combined with bronchodilators, are used for COPD patients as an anti-inflammatory therapy . However, it is also true that chronic inflammation in COPD is steroid-resistant , so the effects of inhaled corticosteroids against persistent inflammation in COPD are limited. Therefore, further exploration for the mechanism of persistent inflammation and the inflammatory cells involved could be important to determine the new drug targets for anti-inflammatory therapy in COPD.
For further understanding of the pathogenesis of chronic inflammation in COPD, we focused on leukocyte immunoglobulin-like receptor B4 (LILRB4) in this study. LILRB4 is one of the inhibitory receptors expressed in various types of immune cells including monocytes and macrophages. LILRB4 is also called immunoglobulin-like transcripts 3 (ILT-3), CD85k, gp49B [5, 6]. Inhibitory receptors are characterized by an intracellular domain called immunoreceptor tyrosine-based inhibition motif (ITIM). Tyrosine phosphatase SHP-1 and SHP-2 are associated upon stimulation and suppress activation signals by the dephosphorylation of tyrosine-phosphorylated proteins [7, 8]. It has been reported that LILRB4 are involved in the pathogenesis of various diseases such as allergic diseases [9, 10], acute lung injury , cancer [12,13,14,15], autoimmune diseases , transplantation immunity [17, 18], nonalcoholic fatty liver disease , and infection disease . It has been reported that LILRB4 on monocyte lineage cells including macrophages was upregulated by inflammatory stimuli including lipopolysaccharide [11, 21], suggesting that LILRB4 could be involved in a negative feedback system to prevent excessive inflammatory responses. However, little is known about the expression kinetics and role of LILRB4 in the pathogenesis of COPD.
In this study, we first aimed to analyze the expression of LILRB4 in lung single cells derived from surgically resected lungs of never-smokers, non-COPD smokers, and COPD patients. We examined which type of cells expressed LILRB4 and analyzed the relation of LILRB4 expression to the prevalence of COPD, respiratory function, smoking, and imaging findings. In addition, we analyzed the changes of LILRB4 expression in an elastase-induced mouse model of emphysema. We further examined the inflammatory responses and emphysematous changes in a mouse model of emphysema using both wild-type and LILRB4-deficietnt mice to surmise the role of LILRB4 in the pathogenesis of emphysematous lesions and COPD.
This study included 51 patients who received surgery for lung cancer in Ishinomaki Red Cross Hospital and Tohoku University Hospital. Patients with respiratory disease other than COPD were excluded. The diagnosis of COPD was determined based on the Global Initiative for Chronic Obstructive Lung Disease (GOLD) guidelines (https://goldcopd.org). The patients were divided into three groups: non-smokers, non-COPD smokers, and COPD patients. We used the Goddard score for the assessment of low attenuation areas (LAA) . This study was approved by the Ethics Committee at Tohoku University School of Medicine (2017–1-352). Written informed consent was obtained from all patients.
Preparation of human lung single-cell suspensions
We prepared human single-cell suspension as previously described with some modification [23,24,25,26]. Minced lung tissues were incubated with Hanks Balanced Salt Solution (Thermo Fisher Scientific, Waltham, MA, USA) containing 1.5 mg/ml Collagenase A (Sigma-Aldrich, St. Louis, MO) and 2000 KU/ml DNase I (Sigma-Aldrich) at 37 °C for 45 min, then minced again with scissors and incubated at 37 °C for 45 min. Single-cell suspensions were filtered with a 100 µm cell strainer (BD biosciences) twice and red blood cells were lysed with ammonium-chloride-potassium lysis buffer (Thermo Fisher Scientific). Cells were resuspended in RPMI 1640 medium (containing l-glutamine and 25 mM HEPES; Thermo Fisher Scientific) with 5% fetal bovine serum and 2% penicillin–streptomycin-amphotericin B suspension (100 units/ml penicillin, 100 µg/ml streptomycin, and 2.5 µg/ml, amphotericin B; FUJIFILM Wako Chemicals, Osaka, Japan) and filtered twice with 70 µm cell strainer (BD Biosciences, Franklin Lakes, NJ, USA). Cell numbers were calculated using trypan blue staining and analyzed by flow cytometry.
C57BL/6 mice were purchased from Charles River Laboratories Japan (Yokohama, Japan) and 7 to 10-week-old female mice were used. LILRB4-deficient mice (gp49B−/−) with the B6 background were previously established . All mice were maintained and bred in the Institute for Animal Experimentation, Tohoku University Graduate School of Medicine, under specific pathogen-free conditions. All animal protocols were reviewed and approved by the Animal Studies Committee of Tohoku University.
Elastase-induced emphysema in mouse model
A mouse model of elastase-induced emphysema was prepared as previously described . Briefly, mice were anesthetized with isoflurane temporarily and were given an intranasal instillation of 3 units porcine pancreatic elastase (FUJIFILM Wako Chemicals) in 50 µl of PBS or 50 µl of PBS alone. Analysis of macrophages was conducted on day 7 and histological examination and CT scan were conducted on day 21.
Bronchoalveolar lavage (BAL)
Mice were injected intraperitoneally with triple mixed anesthesia of medetomidine hydrochloride (0.3 mg/kg), midazolam (4 mg/kg), and butorphanol tartrate (5 mg/kg). After euthanization by cutting the aorta, we inserted a 20-gauge needle into the trachea. Bronchoalveolar lavage fluid (BALF) was collected by washing the lungs three times with 1 ml of PBS. BALF was centrifuged at 300 rpm for 5 min and the supernatant was used for cytokine analysis. Cells were resuspended in PBS and cell counts were determined by a hemocytometer. Cell fractionation was calculated by cytospin slides stained by Diff-Quick method.
Preparation of mouse lung single-cell suspensions
Mouse single-cell suspensions were prepared as previously described with some modification . Lungs chopped with scissors were incubated at 37 °C for 45 min in RPMI solution containing 50 µg/ml Liberase TM (Roche, Basel, Switzerland) and 10 µg/ml DNase I (Roche). The lung tissue was passed through a 40 µm cell strainer. After centrifugation, the cell pellets were resuspended in ACK lysis buffer (Thermo-Fischer Scientific) and incubated to remove red blood cells. The samples were washed with PBS and resuspended in the staining buffer for flow cytometric analysis.
Flow cytometry was performed as previously described with some modification [24, 29]. LIVE/DEAD Fixable Dead Cell Stain Kit (Invitrogen, Carlsbad, CA) was added to single-cell suspensions and incubated at 4 °C for 30 min. After resuspension in FACS buffer containing PBS with 0.1% sodium azide and 2% FBS, human FcR Blocking Reagent (Miltenyi Biotec) in the case of human and anti-CD16/32 mouse antibody in the case of mouse were added to prevent non-specific staining, then incubated 4 °C for 5 min. Based on previous reports [30,31,32], we defined human alveolar macrophages as FSChighCD45+CD206+CD14− cells, human interstitial macrophages as FSCmidCD45+CD206+CD14+ cells, mouse alveolar macrophages as CD45+Ly6G−CD64+CD24−CD11bintCD11c+ cells and mouse interstitial macrophages as CD45+Ly6G−CD64+CD24−CD11b+CD11c− cells. Data were collected by LSR Fortessa (BD Bioscience) and analyzed by FCS express 6 software (De Novo Software, Glendale, CA). Cell sorting was performed using FACS Aria II (BD Biosciences). We utilized fluorescence minus one controls to distinguish the positive population from the negative one.
Brilliant Violet 421-conjugated anti-human CD45 (HI30), APC-conjugated anti-human CD3 (OKT3), APC-conjugated anti-human CD19 (HIB19), FITC-conjugated anti-human CD14 (M5E2), CD11c-conjugated anti-human CD11c (3.9), PE-Cy7-conjugated anti-human HLA-DR (LN3), PerCP-Cy5.5-conjugated anti-human CD56 (5.1H11), PE-conjugated anti-human LILRB4 (ZM4.1), Pacific blue-conjugated anti-mouse CD45 (30-F11), Brilliant violet 510-conjugated anti-mouse CD11b (M1/70), PerCP-Cy5.5-conjugated anti-mouse CD11c (N418), FITC-conjugated anti-mouse Ly6G (1A8), PE-Cy7-conjugated anti-mouse CD64 (X54-5/7.1), APC/Fire 750-conjugated anti-mouse CD24 (M1/69), APC-conjugated anti-mouse IA/IE (M5/114.15.2), PE-conjugated anti-mouse LILRB4 (H1.1), PE-conjugated American Hamster IgG control antibody (HKT888) were purchased from Biolegend. APC conjugated anti-human CD206 (19.2), APC-conjugated mouse IgG1κ control antibody (P188.8.131.52.1), PE-conjugated mouse IgG1κ control antibody (P184.108.40.206.1) were purchased from eBiosciences.
The lung was refluxed by injecting PBS from the right ventricle. The 10% neutral buffered formalin was injected from the trachea at a pressure of 30 cmH2O and the lung was fixed for 24 h. We entrusted the production of paraffin-embedded sections to Experimental Animal pathology Platform Section, Tohoku University. Emphysematous changes were evaluated by the mean liner intercept (MLI) .
Under 2% isoflurane anesthesia, mouse chest CT scans were performed using an X-ray CT system for laboratory animals (LaTheta LCT-200; Hitachi Aloka Medical Ltd., Tokyo, Japan). Calibration was carried out according to the manufacturer’s protocol. The CT value of air was set to -1000 Housefield Units (HU), and water was set to 0 HU. Data were converted to DICOM files and analyzed by LaTheta software (version 3.22) and Image J software (National Institutes of Health, Frederick, MD). The quantitative evaluation of emphysema was performed using the percentage of low attenuation area, which was defined as the area from − 871 to − 610 HU .
Quantitative polymerase chain reaction (qPCR)
RNA was extracted from sorting cells using RNeasy Micro Kit (Qiagen, Valencia, CA) and from lung tissue using RNeasy Mini Kit (Qiagen, Valencia, CA). cDNA was synthesized by the High Capacity RNA-to-cDNA Kit (Thermo Fisher Scientific). Quantitative PCR was conducted on StepOne Plus (Thermo Fisher Scientific) using SYBR Premix Ex Taq (TaKaRa, Kusatsu, Japan).
The levels of mRNA expression were evaluated by the comparative CT method and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as an endogenous control gene. The reference sample was one of the PBS-treated control samples or wild-type control samples. Primer sets were as follows: for mouse IL-10: forward, 5′-GCCAGAGCCACATGCTCCTA-3′, and reverse, 5′-GATAAGGCTTGGCAACCCAAGTAA-3′; for mouse IL-1β: forward, 5′-TCCAGGATGAGGACATGAGCAC-3′, and reverse, 5′-GAACGTCACACACCAGCAGGTTA-3′; for mouse Mmp12: forward, 5′-CTCTAGCCAGCACATGACTCCAA-3′, and reverse, 5′-CTGATGTGAAATGAGCCACACAAC-3′; for mouse TNF-α: forward, 5′-ACTCCAGGCGGTGCCTATGT-3′, and reverse, 5′-GTGAGGGTCTGGGCCATAGAA-3′; for mouse GAPDH: forward, 5′-TGTGTCCGTCGTGGATCTGA-3′, and reverse, 5′-TTGCTGTTGAAGTCGCAGGAG-3′.
Data are expressed by a dot plot with median. Comparison between groups was performed using the Mann–Whitney U test. The Steel–Dwass test was used for nonparametric multiple comparisons among groups. To analysis the relationship between variables, Spearman’s rank correlation coefficient was calculated. All statistical analyses were conducted using GraphPad Prism version 7 (GraphPad Software Inc, Sac Diego, California, USA) or JMP Pro version 16 (SAS Institute Inc, Tokyo, Japan). P < 0.05 was considered significant.
LILRB4 expression on interstitial macrophages was elevated in COPD patients
Because which types of leukocytes expressed LILRB4 in human lung were not clarified, we first examined the expression of LILRB4 on each type of leukocyte in single cell suspensions of normal lung tissue from the patients who received pneumonectomy for lung cancer. Among leukocytes, LILRB4 was clearly expressed on dendritic cells, monocytes, alveolar macrophages (AMs) and interstitial macrophages (IMs) (Fig. 1a–c). We then tried to examine whether the expression of LILRB4 was changed according to the smoking status and prevalence of COPD. We focused on monocytes and macrophages because it has been reported that these cells, especially lung macrophages, are involved in the pathogenesis of COPD . We also had to exclude dendritic cells from further analyses because they were a relatively rare cell population and we could not harvest enough cells from every lung tissue sample for analyses. We compared LILRB4 expression on monocytes, AMs and IMs among non-smokers, non-COPD smokers, and COPD patients. The clinical characteristics of the human studies are shown in Table 1.
The percentage of LILRB4-positive cells in IMs of the COPD patients was significantly higher than in those of non-smokers and non-COPD smokers (Figs. 1d and 2a). On the other hand, there were no significant differences in the percentages of LILRB4-positive cells in lung AMs and monocytes between the patient groups (Fig. 2a).
We next analyzed whether the percentage of LILRB4-positive cells in IMs was correlated with the patients’ characteristics including lung function and severity of emphysematous lesions. The percentage of LILRB4-positive cells in IMs was significantly associated with the FEV1/FVC ratio and percent predicted FEV1 (%FEV1) (Fig. 2b). The percent predicted DLCO/VA (%DLCO/VA) had a significant negative correlation with the percentage of LILRB4-positive cells in IMs (Fig. 2b). We then used the Goddard score to examine the severity of emphysematous lesions by analyzing low attenuation areas on CT images and their correlation with the existence of LILRB4-positive IMs. The severity of emphysematous lesions was well correlated with the percentage of LILRB4-positive cells in IMs (Fig. 2c). The percentage of LILRB4-positive cells in IMs did not significantly correlate with the smoking amount or age (Fig. 2c). These results suggested that the severity of emphysematous lesions was correlated with the accumulation of LILRB4-positive IMs.
LILRB4-deficient mice show exacerbation of emphysema formation induced by elastase administration
The correlation between the severity of emphysematous lesions and the accumulation of LILRB4-positive IMs in human lungs suggested that LILRB4 could have a role in the pathogenesis of emphysema. We then decided to elucidate whether LILRB4 was involved in the pathogenesis of emphysematous lesions. To answer this question, we utilized LILRB4-deficient (LILRB4−/−) mice and analyzed an elastase-induced emphysema mouse model. We first examined the LILRB4 expression on leukocytes in a mouse lung single cell suspension prepared by enzymatic digestion. In the mouse lungs, LILRB4 was also expressed on neutrophils, natural killer cells, and eosinophils, in addition to macrophages, monocytes and dendritic cells (Fig. 3a, b). We distinguished IMs from AMs by cell surface markers as previously reported  and examined the expression of LILRB4 on mouse IMs, finding that IMs expressing LILRB4 also existed in mouse lungs (Fig. 3a, c). We further examined the change of expression of LILRB4 on IMs in an elastase-induced emphysema mouse model. As in the lungs of human COPD patients, the percentage of LILRB4-positive cells in IMs significantly increased after the administration of elastase (Fig. 3c).
We then examined the emphysema formation and the accumulation of inflammatory cells in the airway of the elastase-induced emphysema model. We measured both the mean linear intercept (MLI) by histopathological analysis and the percentage of the low attenuation area (LAA) in the lung field by CT at 21 days after the elastase administration. We found that both indicators, MLI and LAA, were significantly higher in LILRB4−/− mice than to those in wild-type mice, indicating that the emphysematous lesion was exacerbated by the deficiency of LILRB4 (Fig. 4a–d). These data suggested that LILRB4 may have a protective function against emphysema formation in the elastase-induced mouse model.
We also examined inflammatory cell accumulation in the airway because it was possible that the exacerbated emphysema in LILRB4−/− mice might have been due to the exacerbated inflammation induced by elastase. We performed BAL on day 7 and examined the number of the cells in BAL fluids. The numbers of total cells, as well as macrophages and neutrophils, were significantly elevated in the BAL fluid by elastase administration in both the wild-type and LILRB4−/− mice. However, there were no significant differences in the cell counts between the wild-type and LILRB4−/− mice (Fig. 5a–c). We further examined the levels of mRNA expression from pro-inflammatory cytokines (IL-1β and TNF-α) and an anti-inflammatory cytokine (IL-10) in the whole lungs of an emphysema model. The levels of IL-1β and TNF-α, but not those of IL-10, were significantly increased by the administration of elastase (Fig. 6a). In an elastase-induced emphysema model, the level of IL-10, but not those of inflammatory cytokines, was higher in LILRB4−/− mice compared with wild-type mice (Fig. 6b). We also examined isolated lung IMs to determine the levels of cytokine mRNA because it has been reported that lung IM is a major producer of IL-10 . Isolated IMs from elastase administered LILRB4−/− mice showed similar levels of IL-10 and TNF-α, although they showed a higher level of IL-1β (Fig. 6c). These data suggested that the exacerbation of emphysema in LILRB4−/− mice was not due to the aggravation of inflammatory cell accumulation and inflammatory cytokine production.
The deficiency of LILRB4 enhanced MMP-12 production in a mouse emphysema model

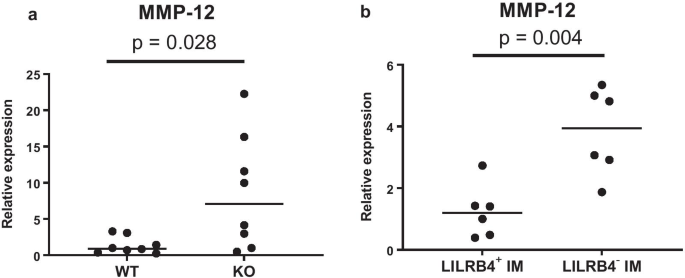

To explore the cause of the exacerbated emphysematous lesions in LILRB4−/− mice, we focused on matrix metalloprotease 12 (MMP-12). MMP-12 is a protease associated with emphysema that is elevated in the sputum and BAL of COPD patients [36,37,38,39]. In animal models, emphysema is not induced by smoking stimulation in MMP-12 knockout mice . A recent investigation has revealed that IM rather than AM is the major producer of MMP-12 in lungs . We examined the expression level of MMP-12 mRNA in whole lungs. The expression level of MMP-12 mRNA in the whole lung of LILRB4−/− mice in the emphysema model was significantly higher than that in wild-type mice (Fig. 7a). We then isolated IMs from digested lungs of the emphysema model and examined the levels of MMP-12 mRNA. LILRB4−/− IMs had significantly higher levels of MMP-12 mRNA than wild-type IMs (Fig. 7b). These results suggested that the deficiency of LILRB4 enhanced the upregulation of MMP-12 by IMs in the lungs of the emphysema model, which may have caused the exacerbation of emphysematous lesions.
In this study, we focused on LILRB4, one of the inhibitory immune-receptors, and tried to determine the changes in expression of LILRB4 and its roles in the pathogenesis of human COPD and the development of emphysema in mice. Our analyses of both the human lung samples and LILRB4-deficeint mice suggest that LILRB4, which is upregulated on lung IMs in COPD patients, may have a protective effect against emphysema formation through decreasing MMP-12 expression.
It has been well reported that lung macrophages are involved in the pathogenesis of emphysematous lesions in both human and animal models . Recent studies have revealed that there are IMs in addition to AMs, the classical lung macrophages, in the lungs of mouse and human, and IMs have distinctively different functions than AMs [43, 44]. It has been recently reported that IM is a major producer of MMP-12 in the lungs in a mouse emphysema model . Our results suggest that LILRB4, which is upregulated on lung IMs in both human COPD patients and a mouse elastase-induced emphysema model, has a protective effect against the formation of emphysematous lesions through the attenuation of MMP-12 production, mainly by IMs.
We have not elucidated how the intracellular signaling via LILRB4 attenuates the expression of MMP-12 in lung IMs. The previous study has elucidated that IL-4 produced by basophils induces the differentiation of accumulated monocytes into MMP-12 producing IMs in a mouse model of emphysema induced by elastase . The observations using genetically engineered mice, including the mice deficient for IL-4 specifically in basophils, have revealed that basophils play a critical role in emphysema formation via producing IL-4, which promotes the differentiation of the infiltrating monocytes into MMP-12 producing IMs in the lungs . STAT6-deficient mice did not show the upregulation of MMP12 mRNA induced by IL-4 in bone marrow-derived macrophages, and chromatin immunoprecipitation-qPCR analyses revealed that IL-4 induced STAT6 binding to the promoter region of MMP12, suggesting that IL-4 mediates MMP-12 expression through STAT6 activation . A protein-tyrosine phosphatase SHP-1 is recruited to LILRB4 through its ITIMs upon crosslinking . A previous study reported that overexpression of SHP-1 reduced both the IL-4-dependent STAT6 activation and STAT6-mediated upregulation of IL-4 responsive genes . Therefore, it is possible that LILRB4 attenuates the expression of MMP-12 in lung IMs through SHP-1 activation recruited to its ITIMs by the inhibition of STAT6 activation by IL-4 that is produced by basophils  and contribute to a protective effect against the formation of emphysematous lesions.
Our studies found that the percentage of LILRB4-positive cells in total lung IMs was significantly increased in both COPD patients and a mouse model of emphysema. We have not yet obtained clear evidence to explain how LILRB4 is upregulated on lung IMs during COPD. However, both previous reports [11, 19, 21] and an analysis of the promoter and enhancer region of LILRB4 provided in the public database likely suggests that LILRB4 may be upregulated by inflammatory stimuli including cytokines. A previous report showed that LILRB4 is upregulated on hepatocytes in nonalcoholic fatty liver disease (NAFLD), a chronic inflammatory disease of the liver . In a high-fat diet induced NAFLD model in mice, the hepatocytes on which LILRB4 is upregulated by inflammatory stimuli showed an improvement from insulin resistance, glucose metabolic disorder, hepatic lipid accumulation, as well as inflammatory responses . This negative feedback-loop is operated by SHP-1 recruitment to LILRB4 to inhibit TRAF6 ubiquitination and subsequent inactivation of NF-κB and mitogen‐activated protein kinase cascades, which results in the attenuation of inflammatory responses . The fact that there are binding sites for both AP-1 and NF-κB, which are the transcription factors activated by inflammatory cytokines (https://www.genecards.org/), also supports the idea that LILRB4 is upregulated by inflammatory stimuli and operates the negative feedback through SHP-1.
This study has several limitations. First, for a human study, the sample size is relatively small and the COPD group had only GOLD stage I and II patients. However, analyses of single lung cells harvested from human lung samples including the lungs of COPD patients are valuable for exploring the pathogenesis of actual human COPD and emphysematous lesions, even if the sample size is small. Second, a mouse model of emphysema induced by elastase, in which both inflammation and the subsequent formation of emphysematous lesions were subacute, is not an optimal model for human COPD as compared to a cigarette smoke-induced model, although this animal model also shows the upregulation of MMP-12, as found in human COPD patients. Third, although fibronectin has been quite recently identified as a physiological ligand on both human monocytic leukemia cell line THP-1 cells and human primary monocytes , the existence of a pathophysiological ligand for LILRB4 on lung IMs in COPD and a mouse emphysema model remains unclear. Further examinations are needed to determine the ligand in order to understand the roles of LILRB4 and its ligand in the pathogenesis of emphysema.
In summary, the severity of emphysematous lesions was correlated with the accumulation of LILRB4-positive IMs in COPD patients. The deficiency of LILRB4 exacerbated emphysematous lesions in a mouse model of emphysema. The deficiency of LILRB4 enhanced the production of MMP-12 by lung IMs, which may contribute to the aggravation of emphysematous lesions. Therefore, LILRB4 may have a protective effect against emphysema formation by its involvement in a negative-feedback loop. Further investigation for LILRB4 and its ligand on IMs may elucidate the pathophysiology of COPD and its emphysematous lesions and possibly lead to the discovery of therapeutic targets for COPD.
Availability of data and materials
The datasets used and analysed during the current study are available from the corresponding author on reasonable request.
Bronchoalveolar lavage fluid
Chronic obstructive pulmonary disease
Diffusing capacity of the lungs for carbon monoxide
- FEV1 :
Forced expiratory volume in one second
- %FEV1 :
Percent predicted forced expiratory volume in one second
Forced vital capacity
Global initiative for chronic obstructive lung disease
Immunoglobulin-like transcripts 3
Low attenuation area
Leukocyte immunoglobulin-like receptor B4
Mean linear intercept
Matrix metalloprotease 12
Nonalcoholic fatty liver disease
Signal transducer and activator of transcription 6
SH2-containing protein tyrosine phosphatase-1
Tumor necrosis factor-α
TNF receptor-associated factor 6
Barnes PJ. Immunology of asthma and chronic obstructive pulmonary disease. Nat Rev Immunol. 2008;8:183–92.
Hogg JC, Timens W. The pathology of chronic obstructive pulmonary disease. Annu Rev Pathol. 2009;4:435–59.
Nici L, Mammen MJ, Charbek E, Alexander PE, Au DH, Boyd CM, Criner GJ, Donaldson GC, Dreher M, Fan VS, et al. Pharmacologic management of chronic obstructive pulmonary disease. An Official American Thoracic Society Clinical Practice Guideline. Am J Respir Crit Care Med. 2020;201:e56–69.
Barnes PJ. Corticosteroid resistance in patients with asthma and chronic obstructive pulmonary disease. J Allergy Clin Immunol. 2013;131:636–45.
Cella M, Dohring C, Samaridis J, Dessing M, Brockhaus M, Lanzavecchia A, Colonna M. A novel inhibitory receptor (ILT3) expressed on monocytes, macrophages, and dendritic cells involved in antigen processing. J Exp Med. 1997;185:1743–51.
Katz HR. Inhibition of pathologic inflammation by leukocyte Ig-like receptor B4 and related inhibitory receptors. Immunol Rev. 2007;217:222–30.
van der Touw W, Chen HM, Pan PY, Chen SH. LILRB receptor-mediated regulation of myeloid cell maturation and function. Cancer Immunol Immunother. 2017;66:1079–87.
Ravetch JV, Lanier LL. Immune inhibitory receptors. Science. 2000;290:84–9.
Breslow RG, Rao JJ, Xing W, Hong DI, Barrett NA, Katz HR. Inhibition of Th2 adaptive immune responses and pulmonary inflammation by leukocyte Ig-like receptor B4 on dendritic cells. J Immunol. 2010;184:1003–13.
Norris HH, Peterson ME, Stebbins CC, McConchie BW, Bundoc VG, Trivedi S, Hodges MG, Anthony RM, Urban JF Jr, Long EO, Keane-Myers AM. Inhibitory receptor gp49B regulates eosinophil infiltration during allergic inflammation. J Leukoc Biol. 2007;82:1531–41.
Qiu T, Zhou J, Wang T, Chen Z, Ma X, Zhang L, Zou J. Leukocyte immunoglobulin-like receptor B4 deficiency exacerbates acute lung injury via NF-kappaB signaling in bone marrow-derived macrophages. Biosci Rep. 2019;39: BSR20181888.
Singh L, Muise ES, Bhattacharya A, Grein J, Javaid S, Stivers P, Zhang J, Qu Y, Joyce-Shaikh B, Loboda A, et al. ILT3 (LILRB4) promotes the immunosuppressive function of tumor-educated human monocytic myeloid-derived suppressor cells. Mol Cancer Res. 2021;19:702–16.
Sharma N, Atolagbe OT, Ge Z, Allison JP. LILRB4 suppresses immunity in solid tumors and is a potential target for immunotherapy. J Exp Med. 2021;218: e20201811.
Deng M, Gui X, Kim J, Xie L, Chen W, Li Z, He L, Chen Y, Chen H, Luo W, et al. LILRB4 signalling in leukaemia cells mediates T cell suppression and tumour infiltration. Nature. 2018;562:605–9.
de Goeje PL, Bezemer K, Heuvers ME, Dingemans AC, Groen HJ, Smit EF, Hoogsteden HC, Hendriks RW, Aerts JG, Hegmans JP. Immunoglobulin-like transcript 3 is expressed by myeloid-derived suppressor cells and correlates with survival in patients with non-small cell lung cancer. Oncoimmunology. 2015;4: e1014242.
Inui M, Sugahara-Tobinai A, Fujii H, Itoh-Nakadai A, Fukuyama H, Kurosaki T, Ishii T, Harigae H, Takai T. Tolerogenic immunoreceptor ILT3/LILRB4 paradoxically marks pathogenic auto-antibody-producing plasmablasts and plasma cells in non-treated SLE. Int Immunol. 2016;28:597–604.
Tian Y, Meng L, Wang Y, Li B, Yu H, Zhou Y, Bui T, Abraham C, Li A, Zhang Y, et al. Graft-versus-host disease depletes plasmacytoid dendritic cell progenitors to impair tolerance induction. J Clin Invest. 2021;131: e136774.
Chang CC, Ciubotariu R, Manavalan JS, Yuan J, Colovai AI, Piazza F, Lederman S, Colonna M, Cortesini R, Dalla-Favera R, Suciu-Foca N. Tolerization of dendritic cells by T(S) cells: the crucial role of inhibitory receptors ILT3 and ILT4. Nat Immunol. 2002;3:237–43.
Lu Y, Jiang Z, Dai H, Miao R, Shu J, Gu H, Liu X, Huang Z, Yang G, Chen AF, et al. Hepatic leukocyte immunoglobulin-like receptor B4 (LILRB4) attenuates nonalcoholic fatty liver disease via SHP1-TRAF6 pathway. Hepatology. 2018;67:1303–19.
Li Z, Zhao M, Li T, Zheng J, Liu X, Jiang Y, Zhang H, Hu X. Decidual macrophage functional polarization during abnormal pregnancy due to Toxoplasma gondii: role for LILRB4. Front Immunol. 2017;8:1013.
Brown DP, Jones DC, Anderson KJ, Lapaque N, Buerki RA, Trowsdale J, Allen RL. The inhibitory receptor LILRB4 (ILT3) modulates antigen presenting cell phenotype and along with LILRB2 (ILT4), is upregulated in response to Salmonella infection. BMC Immunol. 2009;10:56.
Goddard PR, Nicholson EM, Laszlo G, Watt I. Computed tomography in pulmonary emphysema. Clin Radiol. 1982;33:379–87.
Suzuki T, Suzuki S, Fujino N, Ota C, Yamada M, Suzuki T, Yamaya M, Kondo T, Kubo H. c-Kit immunoexpression delineates a putative endothelial progenitor cell population in developing human lungs. Am J Physiol Lung Cell Mol Physiol. 2014;306:L855–65.
Fujino N, Kubo H, Ota C, Suzuki T, Suzuki S, Yamada M, Takahashi T, He M, Kondo T, Yamaya M. A novel method for isolating individual cellular components from the adult human distal lung. Am J Respir Cell Mol Biol. 2012;46:422–30.
Numakura T, Sugiura H, Akaike T, Ida T, Fujii S, Koarai A, Yamada M, Onodera K, Hashimoto Y, Tanaka R, et al. Production of reactive persulfide species in chronic obstructive pulmonary disease. Thorax. 2017;72:1074–83.
Onodera K, Sugiura H, Yamada M, Koarai A, Fujino N, Yanagisawa S, Tanaka R, Numakura T, Togo S, Sato K, et al. Decrease in an anti-ageing factor, growth differentiation factor 11, in chronic obstructive pulmonary disease. Thorax. 2017;72:893–904.
Kasai S, Inui M, Nakamura K, Kakizaki Y, Endo S, Nakamura A, Ito S, Takai T. A novel regulatory role of gp49B on dendritic cells in T-cell priming. Eur J Immunol. 2008;38:2426–37.
Moro K, Ealey KN, Kabata H, Koyasu S. Isolation and analysis of group 2 innate lymphoid cells in mice. Nat Protoc. 2015;10:792–806.
Takei Y, Yamada M, Saito K, Kameyama Y, Sugiura H, Makiguchi T, Fujino N, Koarai A, Toyama H, Saito K, et al. Increase in circulating ACE-positive endothelial microparticles during acute lung injury. Eur Respir J. 2019;54:1801188.
Yu YR, Hotten DF, Malakhau Y, Volker E, Ghio AJ, Noble PW, Kraft M, Hollingsworth JW, Gunn MD, Tighe RM. Flow cytometric analysis of myeloid cells in human blood, bronchoalveolar lavage, and lung tissues. Am J Respir Cell Mol Biol. 2016;54:13–24.
Yu YR, O’Koren EG, Hotten DF, Kan MJ, Kopin D, Nelson ER, Que L, Gunn MD. A protocol for the comprehensive flow cytometric analysis of immune cells in normal and inflamed murine non-lymphoid tissues. PLoS ONE. 2016;11: e0150606.
Dewhurst JA, Lea S, Hardaker E, Dungwa JV, Ravi AK, Singh D. Characterisation of lung macrophage subpopulations in COPD patients and controls. Sci Rep. 2017;7:7143.
Thurlbeck WM. Internal surface area and other measurements in emphysema. Thorax. 1967;22:483–96.
Kobayashi S, Fujinawa R, Ota F, Kobayashi S, Angata T, Ueno M, Maeno T, Kitazume S, Yoshida K, Ishii T, et al. A single dose of lipopolysaccharide into mice with emphysema mimics human chronic obstructive pulmonary disease exacerbation as assessed by micro-computed tomography. Am J Respir Cell Mol Biol. 2013;49:971–7.
Sabatel C, Radermecker C, Fievez L, Paulissen G, Chakarov S, Fernandes C, Olivier S, Toussaint M, Pirottin D, Xiao X, et al. Exposure to bacterial CpG DNA protects from airway allergic inflammation by expanding regulatory lung interstitial macrophages. Immunity. 2017;46:457–73.
Chaudhuri R, McSharry C, Brady J, Donnelly I, Grierson C, McGuinness S, Jolly L, Weir CJ, Messow CM, Spears M, et al. Sputum matrix metalloproteinase-12 in patients with chronic obstructive pulmonary disease and asthma: relationship to disease severity. J Allergy Clin Immunol. 2012;129:655–63.
Molet S, Belleguic C, Lena H, Germain N, Bertrand CP, Shapiro SD, Planquois JM, Delaval P, Lagente V. Increase in macrophage elastase (MMP-12) in lungs from patients with chronic obstructive pulmonary disease. Inflamm Res. 2005;54:31–6.
Babusyte A, Stravinskaite K, Jeroch J, Lotvall J, Sakalauskas R, Sitkauskiene B. Patterns of airway inflammation and MMP-12 expression in smokers and ex-smokers with COPD. Respir Res. 2007;8:81.
Finlay GA, O’Driscoll LR, Russell KJ, D’Arcy EM, Masterson JB, FitzGerald MX, O’Connor CM. Matrix metalloproteinase expression and production by alveolar macrophages in emphysema. Am J Respir Crit Care Med. 1997;156:240–7.
Hautamaki RD, Kobayashi DK, Senior RM, Shapiro SD. Requirement for macrophage elastase for cigarette smoke-induced emphysema in mice. Science. 1997;277:2002–4.
Shibata S, Miyake K, Tateishi T, Yoshikawa S, Yamanishi Y, Miyazaki Y, Inase N, Karasuyama H. Basophils trigger emphysema development in a murine model of COPD through IL-4-mediated generation of MMP-12-producing macrophages. Proc Natl Acad Sci U S A. 2018;115:13057–62.
Ni L, Dong C. Roles of myeloid and lymphoid cells in the pathogenesis of chronic obstructive pulmonary disease. Front Immunol. 2018;9:1431.
Liegeois M, Legrand C, Desmet CJ, Marichal T, Bureau F. The interstitial macrophage: a long-neglected piece in the puzzle of lung immunity. Cell Immunol. 2018;330:91–6.
Schyns J, Bureau F, Marichal T. Lung interstitial macrophages: past, present, and future. J Immunol Res. 2018;2018:5160794.
Nakagomi D, Suzuki K, Meguro K, Hosokawa J, Tamachi T, Takatori H, Suto A, Matsue H, Ohara O, Nakayama T, et al. Matrix metalloproteinase 12 is produced by M2 macrophages and plays important roles in the development of contact hypersensitivity. J Allergy Clin Immunol. 2015;135:1397–400.
Haque SJ, Harbor P, Tabrizi M, Yi T, Williams BR. Protein-tyrosine phosphatase Shp-1 is a negative regulator of IL-4- and IL-13-dependent signal transduction. J Biol Chem. 1998;273:33893–6.
Su MT, Inui M, Wong YL, Takahashi M, Sugahara-Tobinai A, Ono K, Miyamoto S, Murakami K, Itoh-Nakadai A, Kezuka D, et al. Blockade of checkpoint ILT3/LILRB4/gp49B binding to fibronectin ameliorates autoimmune disease in BXSB/Yaa mice. Int Immunol. 2021. https://doi.org/10.1093/intimm/dxab1028.
We thank Mr. Brent K. Bell for critical reading of the manuscript and for language assistance. We acknowledge the support of the Biomedical Research Unit of Tohoku University Hospital and Biomedical Research Core of Tohoku University Graduate School of Medicine.
This work was supported by Grants-in-Aid for Scientific Research (18K08134 to M. Yamada, 18K15914 to Y. Mitsuhashi, 18K15943 to T. Makiguchi, 20H03684 to S. Hisatoshi, A. Mitsune to 21K16131) from the Japan Society for the Promotion of Science (JSPS).
Ethics approval and consent to participate
The study with human subjects was approved by the Ethics Committee at Tohoku University School of Medicine (2017-1-352). Written informed consent was obtained from all patients. All animal protocols for the experiments in this study were reviewed and approved by the Animal Studies Committee of Tohoku University.
Consent for publication
The authors declare that they have no competing interests.
